Description
Professional 1/4″ compressed air/hydraulic pop rivet gun – 00749
Compressed air – rivet tool, rivet tool, rivet gun, blind riveting pliers, pop rivet pliers, riveting pliers, rivet gun, with pneumatic/hydraulic drive
The internal hydraulic is activated with the help of the pneumatic drive.
Pop riveting gun with well-engineered pneumatic hydraulic force amplification
With transparent container for the torn-down pins.
It is lightweight, extremely strong and very fast.
With 14 mm stroke and low volume.
The high pressure and the large stroke can be used to pop rivets in one pass.
The torn-down pins fall off the gun at the rear automatically and into the container
4 interchangeable nozzles
For standard copper and aluminium semi tubular rivets in the following sizes: 3.2 mm, 4.0 mm, 4.8 mm, 6 mm

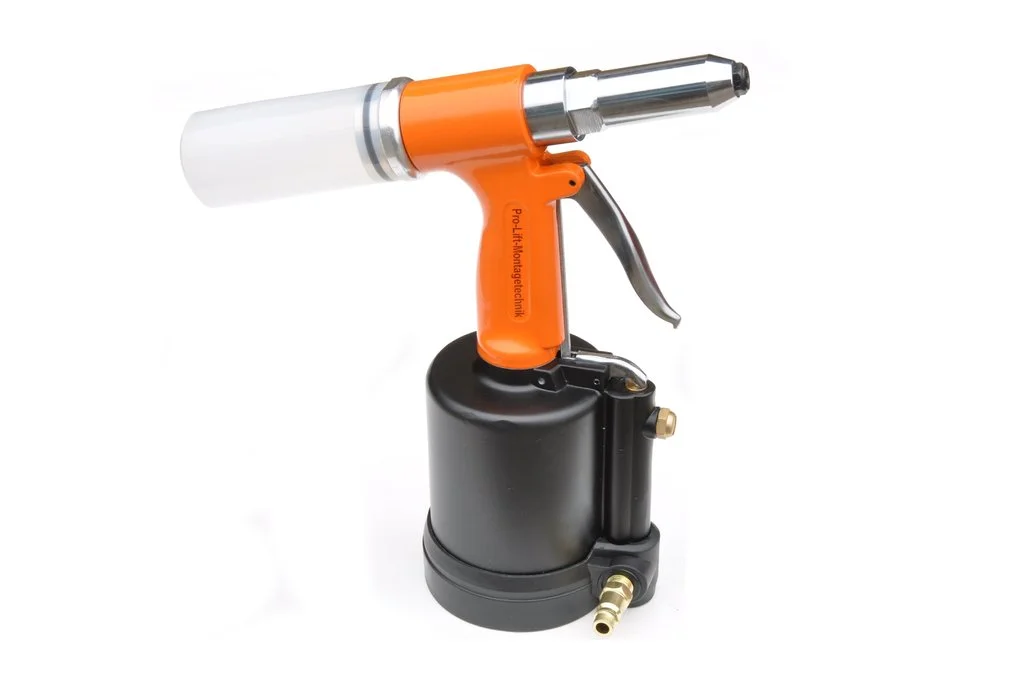

Illustration similar
Technical data:
Rivet sizes: 3.2 mm, 4.0 mm, 4.8 mm, 6 mm
Tractive force: 850 kg
Length: 14 mm
Working pressure: 6.3 bar
Air connection thread: 1/4″
Required inside diameter of the hose: 3/8″
Dimensions length from tip including container: 255 mm
Total height from the ground to the top: 275 mm
The riveting unit weight: approx. 2 kg
Shipping weight: 2.5 kg
